New Units » Moto Guzzi » Griso 1200 8V
Model Quick Search

$14,290.00

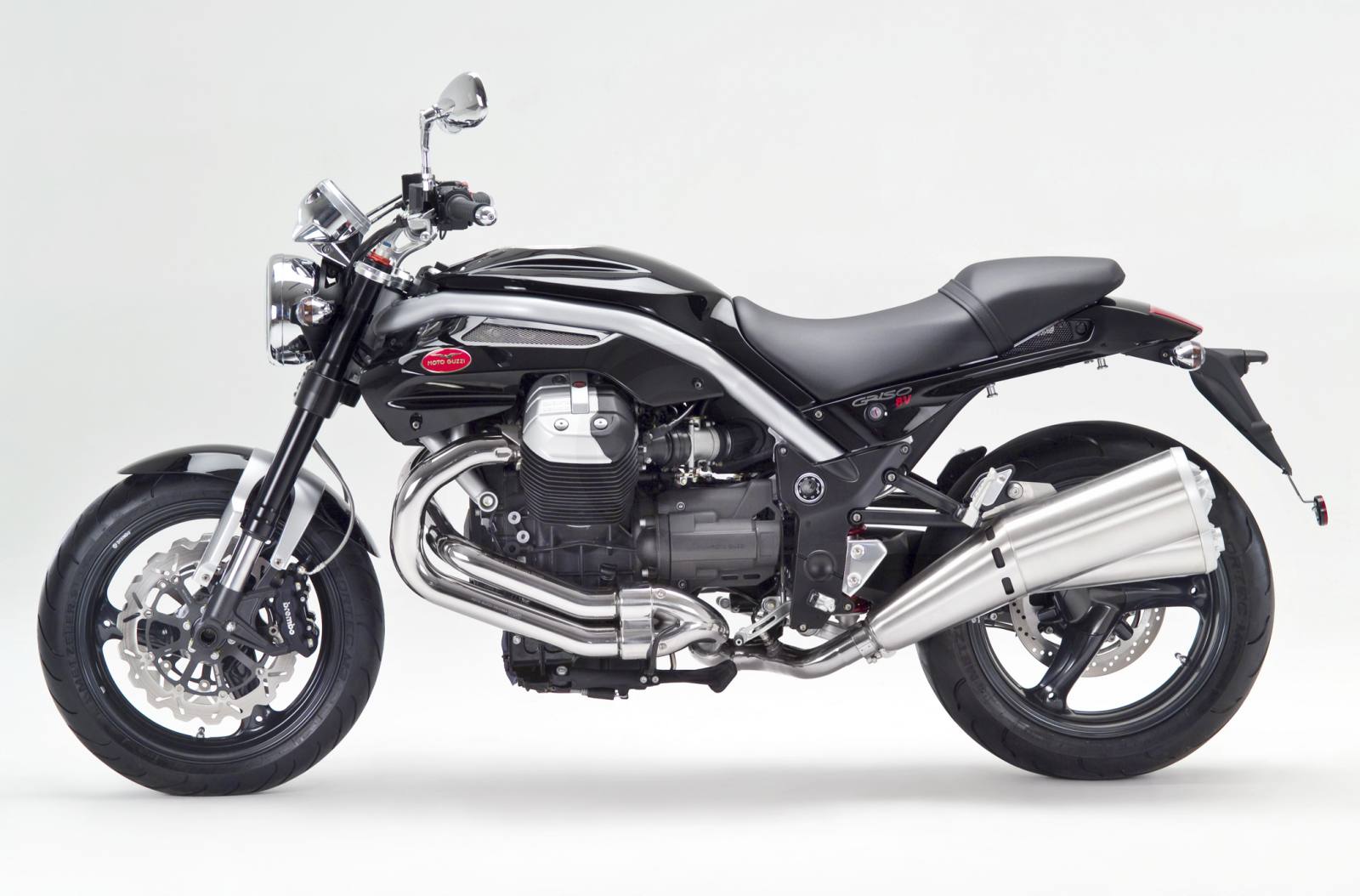

2010 Moto Guzzi Griso 1200 8V


Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

“His power became greater in reality and in the minds of others.” This is a description of ‘Griso’, a character in ‘I promessi sposi’ by Alessandro Manzoni, one of the most famous works of Italian literature. In the book, Griso is a tough and fearless leader of the Bravi, and a man “who naturally undertook all the most daring enterprises”. This description could just as well be applied to the new Griso 8V, the most exciting and spirited of all Moto Guzzi models, designed to create a new, more intense concept of sports riding based on sheer power and four valve cylinder head technology. Designed to respect a tradition that has lasted forty years, the new engine adopts the rational 90° transverse V twin layout but with 563 new parts, and introduces for the first time single overhead cam valve timing and silent running Morse chains to operate the four valves per cylinder. 75% of this highly developed Moto Guzzi 1200 cc engine has been modified compared to its predecessor, to produce 110 HP at only 7500 rpm and a maximum torque of 11 Kgm at 6400 rpm.

    Engine
    • Type: Four-stroke V 90 twin
    • Cooling: Air and oil cooled with independent cooling pump
    • Capacity: 1,151cc
    • Bore and stroke: 95 x 81.2 mm
    • Compression ratio: 11 : 1
    • Timing diagram (play 1 mm): Intake valve opening 36° before upper TDC. Intake valve closing 62° after lower TDC. Exhaust valve opening 58° before lower TDC. Exhaust valve closing 30° after upper TDC. measured with rocker arm/valve play of 1.5 mm
    • Maximum power output: Over 80.8 kW (110 CV) at 7,500 rpm
    • Max Torque: Over 108 Nm at 6,400 rpm
    • Fuel supply/ignition: Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x Ø50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe.
    • Starter: Electric
    • Spark plugs: NGK PMR8B (Long Life)
    • Exhaust system: Stainless steel two-into-one 3-way catalysed with Lambda probe.
    • Homologation: Euro 3
    Transmission
    • Gearbox: 6 speed
    • Gear ratios: 1st 17/38 = 1 : 2.235; 2nd 20/34 = 1 : 1.700; 3rd 23/31 = 1 : 1.348; 4th 26/29 = 1 : 1.115; 5th 31/30 = 1 : 0.968; 6th 29/25 = 1 : 0.862
    • Lubrication: Oil bath
    • Primary drive: Helicoidal gears, ratio 26/35 = 1 : 1.346
    • Final drive: CA.R.C reactive drive; double universal joint with floating bevel gear, ratio 12/44 = 1 : 3,666
    • Clutch: Single plate with integrated flexible couplings
    Chassis
    • Frame: High tensile steel tubular twin cradle
    • Wheelbase: 1,554 mm
    • Rake: 108 mm
    • Steering rake: 26.30°
    • Steering angle.: 34°
    • Front suspension: Upside down Ø 43 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
    • Front wheel travel: 120 mm
    • Rear suspension: Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
    • Rear wheel travel: 110 mm
    • Front brakes: Twin floating 320 mm stainless steel wave discs, radial calipers with 4 opposed pistons.
    • Rear brakes: Single 282 mm fixed stainless steel disc, floating caliper with 2 parallel pistons.
    • Wheels: Three-spoked aluminum alloy
    • Front wheel: 3.50” x 17”
    • Rear wheel: 5.50” x 17”
    • Front tyre: 120/70 ZR 17”
    • Rear tyre: 180/55 ZR 17”
    Electrics
    • Voltage: 12 V
    • Battery: 12 V – 18 Ah
    • Alternator: 12 V – 550 W
    Dimensions
    • Length: 2,260 mm
    • Width: 830 mm
    • Height: 1,070 mm
    • Saddle height: 800 mm
    • Minimum ground clearance: 185 mm
    • Dry weight: 222 kg
    • Fuel tank capacity: 16.7 litres
    • Reserve: 3.3 litres

    Specifications

    Engine
    Engine Type 90° V-Twin, 4 stroke
    Displacement 1,151cc
    Bore and Stroke 95 x 81.2 mm
    Cooling Air and oil cooled with independent cooling pump
    Compression Ratio 11 : 1
    Fuel System Two 50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe
    Chassis
    Front Suspension Upside down Ø 43 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers
    Front Brakes Twin floating 320 mm stainless steel wave discs, radial calipers with 4 opposed pistons
    Front Tire 120/70 ZR 17 in.
    Rear Suspension Progressive single swingarm, fully adjustable monoshock with separate gas reservoir
    Rear Brakes Single 282 mm fixed stainless steel disc, floating caliper with two parallel pistons
    Rear Tire 180/55 ZR 17 in.
    Dimensions
    Dry Weight 489 lbs (222 kg)
    Fuel Capacity 4.4 gal. (16.7 l), 0.9 gal. (3.3 l) reserve
    Wheelbase 61.2 in. (1,554 mm)
    Seat Height 31.5 in. (800 mm)
    Transmission
    Transmission Gearbox: 6 speed; Primary Drive: Helicoidal gears, ratio 26/35 = 1 : 1.346
    Final Drive CA.R.C reactive drive; double universal joint with floating bevel gear, ratio 12/44 = 1 : 3,666
    General
    Speedometer Standard: Analog
    Odometer Standard: Analog
    Colors Guzzi Black; Moon White
    Warranty Two-year factory warranty, 24-hour roadside assistance

    Compare Models

    Print








    Year 2010
    Manufacturer Moto Guzzi
    Model Griso 1200 8V
    Style Naked
    MSRP* $14,290.00
    Chassis
    Front Suspension Upside down Ø 43 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers
    Front Brakes Twin floating 320 mm stainless steel wave discs, radial calipers with 4 opposed pistons
    Front Tire 120/70 ZR 17 in.
    Rear Suspension Progressive single swingarm, fully adjustable monoshock with separate gas reservoir
    Rear Brakes Single 282 mm fixed stainless steel disc, floating caliper with two parallel pistons
    Rear Tire 180/55 ZR 17 in.
    Dimensions
    Dry Weight 489 lbs (222 kg)
    Fuel Capacity 4.4 gal. (16.7 l), 0.9 gal. (3.3 l) reserve
    Wheelbase 61.2 in. (1,554 mm)
    MPG
    Seat Height 31.5 in. (800 mm)
    Trail
    Rake
    Engine
    Engine Type 90° V-Twin, 4 stroke
    Displacement 1,151cc
    Bore and Stroke 95 x 81.2 mm
    Cooling Air and oil cooled with independent cooling pump
    Compression Ratio 11 : 1
    Fuel System Two 50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe
    Ignition
    General
    Speedometer Standard: Analog
    Tachometer
    Odometer Standard: Analog
    Colors Guzzi Black; Moon White
    Warranty Two-year factory warranty, 24-hour roadside assistance
    Transmission
    Transmission Gearbox: 6 speed; Primary Drive: Helicoidal gears, ratio 26/35 = 1 : 1.346
    Final Drive CA.R.C reactive drive; double universal joint with floating bevel gear, ratio 12/44 = 1 : 3,666
